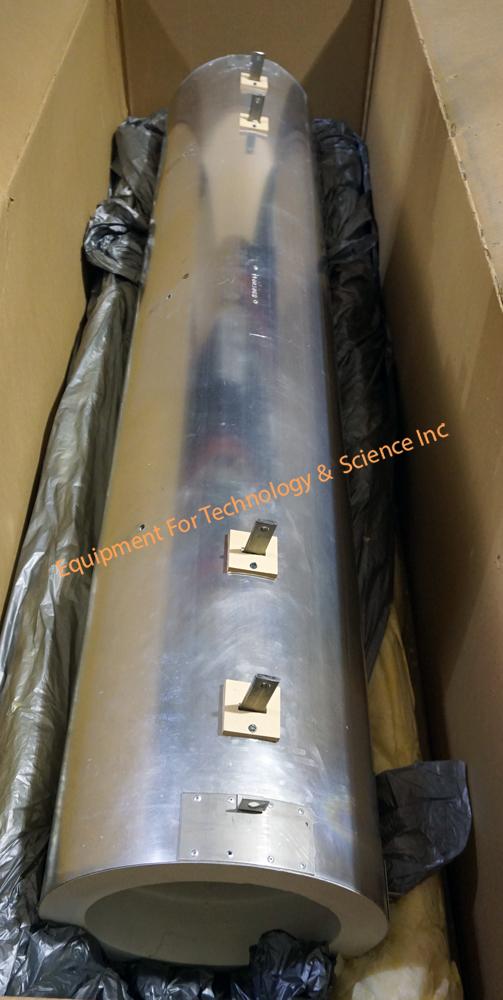

Thermcraft AD-1104 diffusion furnace heating elements for maximum 200mm wafers
Product #3313
$4900.00
length 72"
inner diameter 10.5"
outer diameter 14.5"
temperature range 200C-1200C
These are new elements in the original shipping cartons
4 available
The Duracraftâ„¢ design incorporates helically wound heavy gauge conventional wire or Kanthalâ„¢ APM powdered-metal wire. The heavy gauge wire enables higher temperature operation. The addition of self-locking ceramic spacers increases consistency and reliability under fluctuations of repeated temperature cycling. Upgrading to Kanthalâ„¢ APM powdered-metal wire allows for the highest temperature operation, large temperature swings and longer element life.
Documents:
| Availability | In Stock |
| Condition | Refurbished |
| Part# | |
| Package Weight | 0 lbs |
| Package Width | 0 IN |
| Package Length | 0 IN |
| Package Height | 0 IN |
