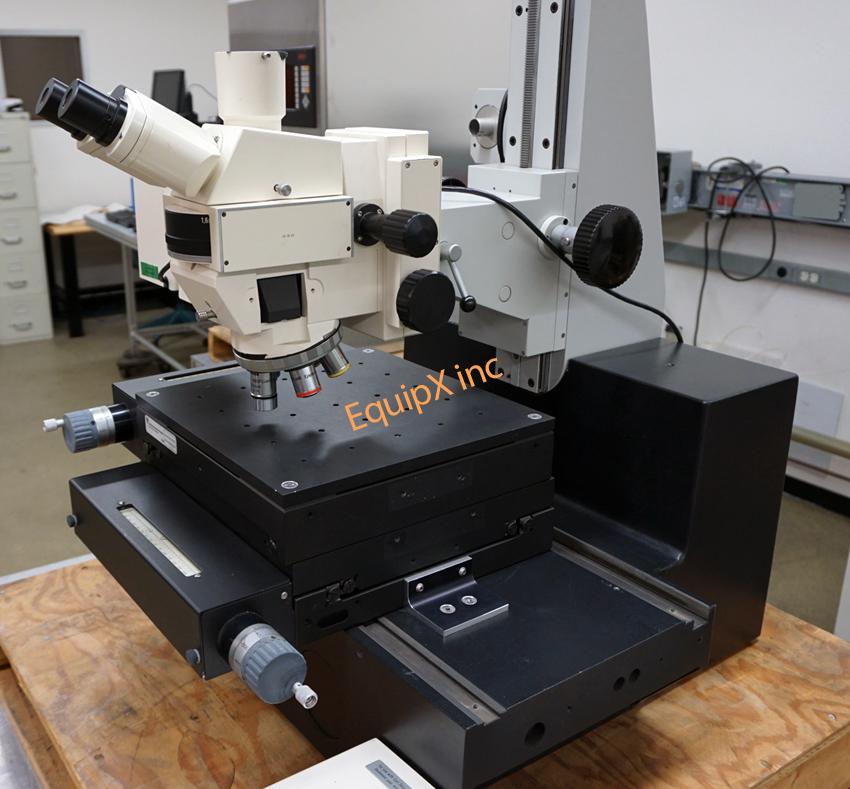

Leitz heavy base and support with 6x6 precision manual stage and Zeiss microscope
$4950.00
Manufacturer: LeicaZeiss
Name / Model#: custom
Reference #: R-4072
Nikon Optiphot 150 Inspection Microscope for brightfield, darkfield, and DIC
$8450.00
Name / Model#: Optiphot 150

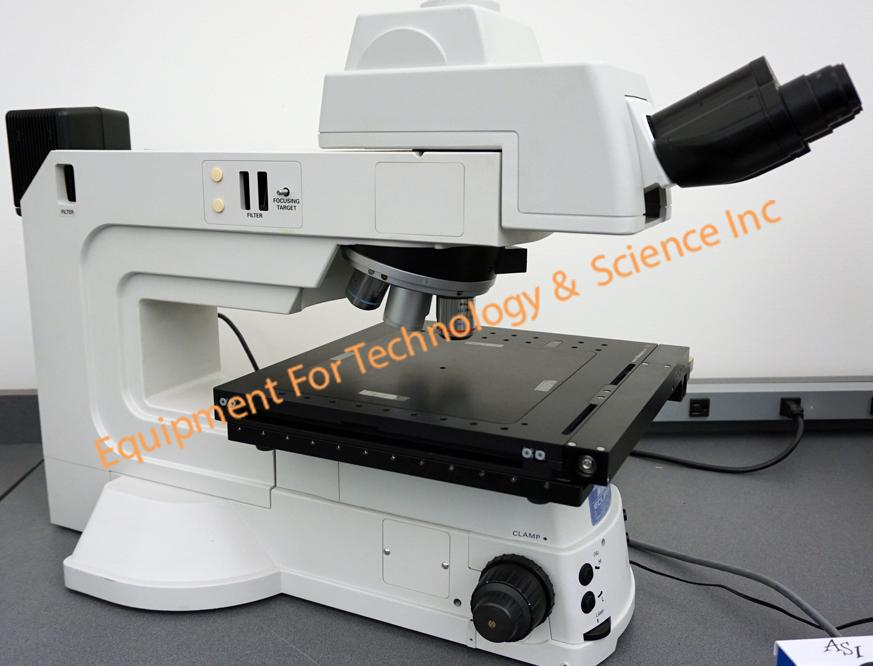

Nikon Eclipse L300 inspection microscope with ASI MS-8000 8x8 XY travel motorized stage
$36500.00
The lead screw pitch on that stage is 2TPI (turns per inch) This is what dictates the maximum speed, repeatability, and encoder resolution. These motors turn about 1 revolution per second. So In this case your max speed is around 13mm per second, the encoder resolution is 4.4nm, and the bidirectional
sell 36500.

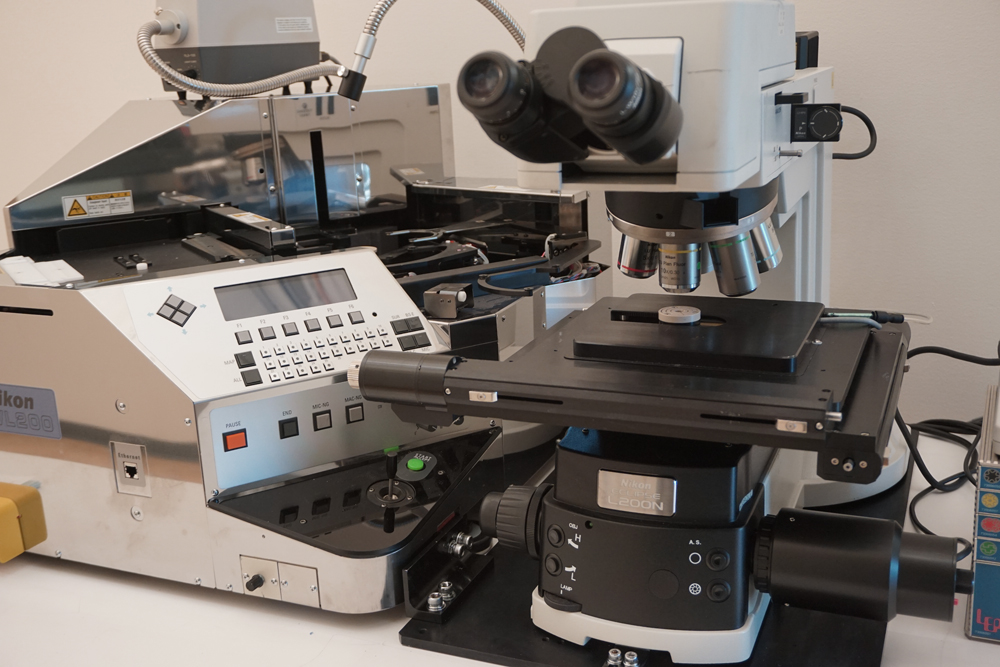

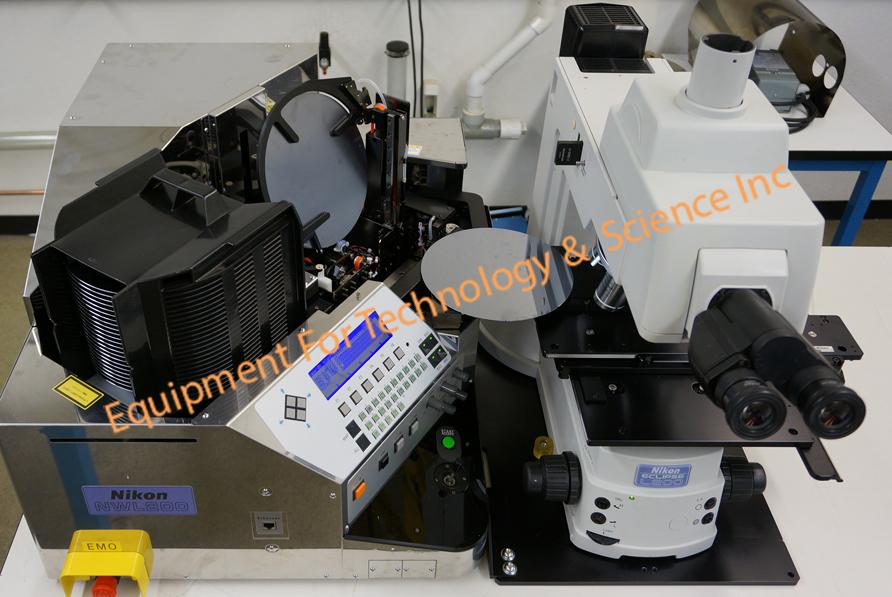

Nikon Eclipse L200N microscope, NWL200TMB wafer loader, Ludl MAC6000 motorized XY stage and focus-200mm wafer inspection system
$85000.00
Manufacture date 2017
Cost May 2022
NWL200TMB-86 auto loader w/ front and back side macro inspection and macro illumination: $70K
L200N w/ 5X, 10X, 20X, 50X, 100X BD objectives: $45K
Ludl motorized XYZ components w/ shuttle arm insert for auto loader: $35K
Nomarski/DIC components: $8K
DS-Fi3 camera and Elements software: $8K
Total $166,000
Sell $95,000
Keyence IM6500 image dimension measuring system (2011)
$14900.00
Price for IM-6125 (2015) 13.900 €
Price for LM-1100 (2020) 23.900 €
