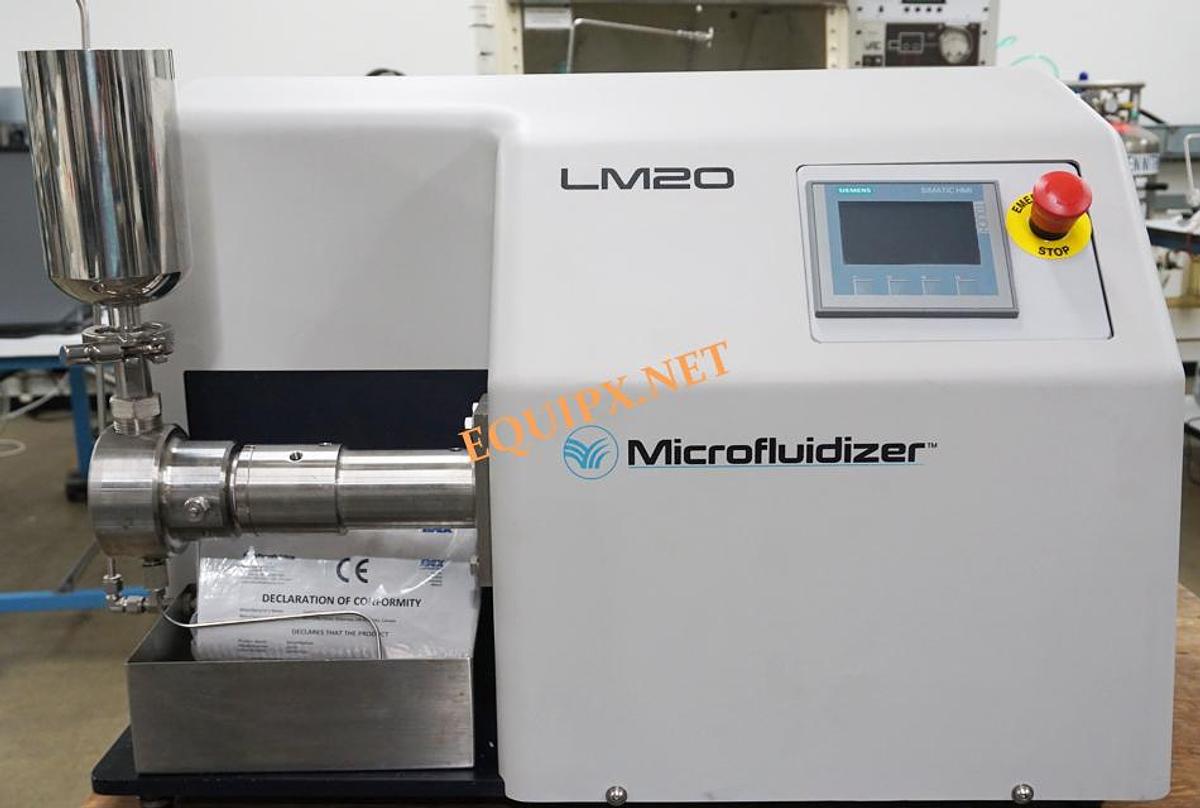

Microfluidics LM20 high shear microfluidizer (2018)

Microfluidics LM20 high shear microfluidizer (2018)

$24,900 (USD)

or
Call (408) 209-9278

Description

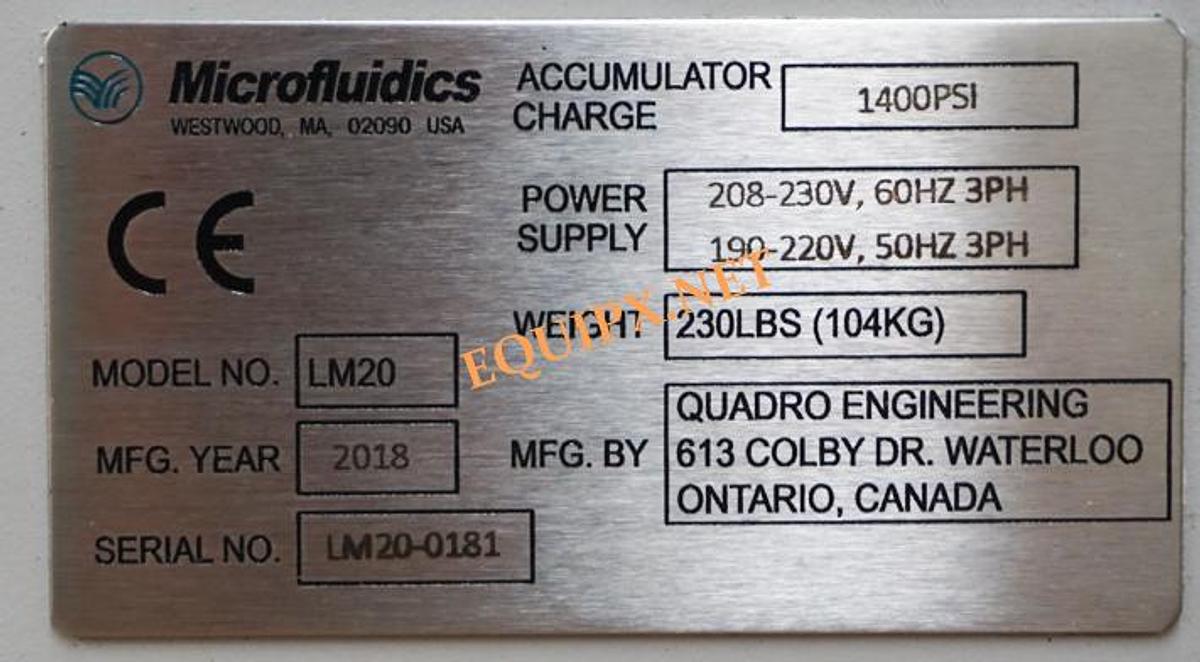

sn LM20-0181


Year of manufacture 2018


DESCRIPTION

The LM20 Microfluidizer is digitally controlled high pressure homogeniser for small volumes. It maintains identical sample processing conditions, producing the desired results, including: uniform particle and droplet size reduction (often submicron), deagglomeration and high-yield cell disruption.

The LM20 contains an intensifier pump designed to supply the desired pressure at a constant rate to the product stream. As the pump travels through its pressure stroke, it drives the product at constant pressure through precisely defined fixed-geometry microchannels within the interaction chamber.

As a result, the product stream accelerates to high velocities, creating shear rates within the product stream that are orders of magnitude greater than any other conventional means. All of the product experiences identical processing conditions, producing the desired results, including: uniform particle and droplet size reduction (often submicron), deagglomeration and high-yield cell disruption.

The Microfluidizer® LM20 processor:

  • Operates at pressures up to 30,000 psi (2068 bar) (20,000 psi for LM20-20 model)
  • Requires a minimum sample size of 14 ml
  • Is suitable for laboratory and benchtop applications
  • Achieves unmatched size reduction/disruption performance at lower process pressure
  • Limits sample temperature rise during processing, ensuring minimal heat denaturation of sensitive materials
  • Results in higher product yields after sterile filtration with tighter particle size distribution
  • Saves on development time in pilot/production with linear volumetric scaleup
  • Provides enhanced repeatability with easy-to-use digital pressure control
  • Has a compact design that fits in a fume hood
  • Ensures dependable process performance over time with maintenance reminder and operator alerts
  • Adapts to future experimentation possibilities with field upgradable firmware

    • STANDARD FEATURES

  • 300 ml glass reservoir
  • Diamond interaction chamber (ceramic chamber is standard on LM20-20 model)
  • Digital pressure control
  • Integrated stroke counter with maintenance reminder
  • Multiple languages (selectable by user)
    • Show All

    Specifications

    Stock Number5018
    ManufacturerMicrofluidics
    ModelLM20
